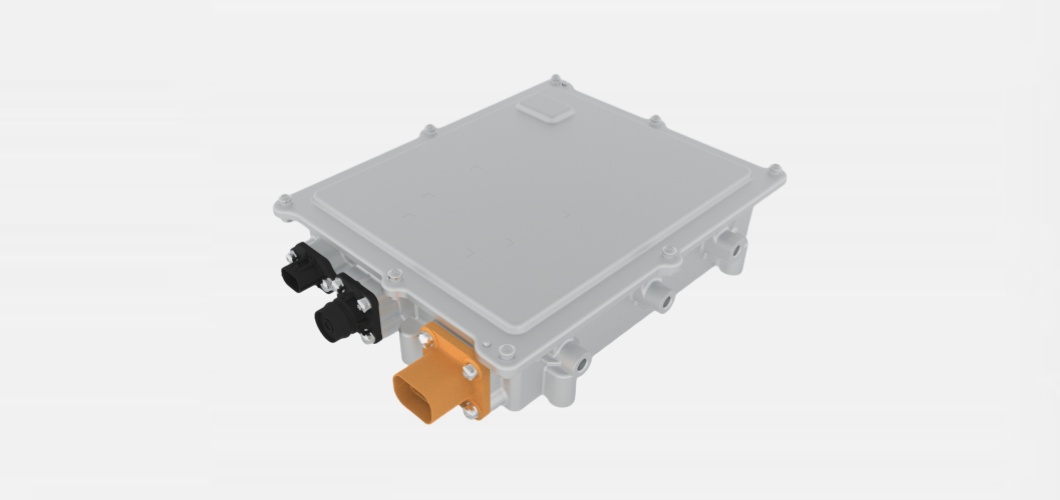

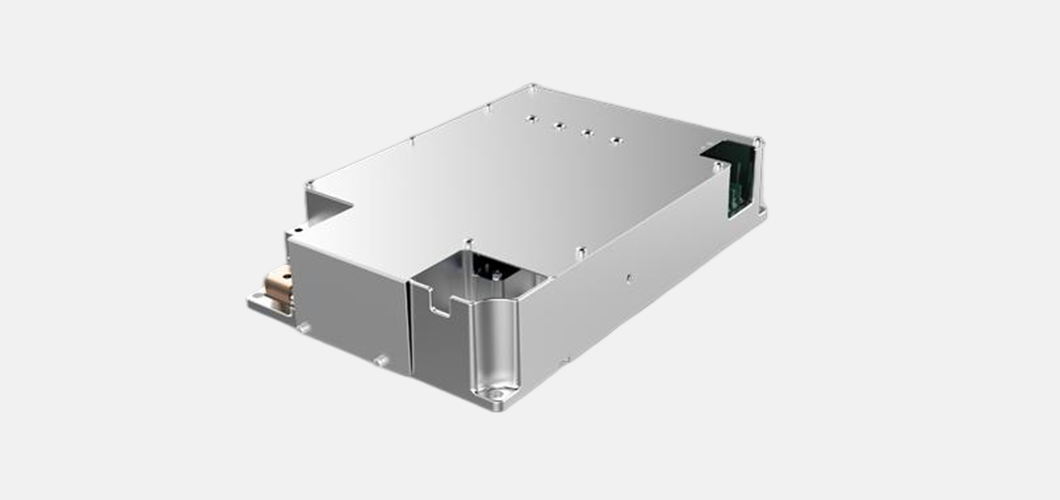

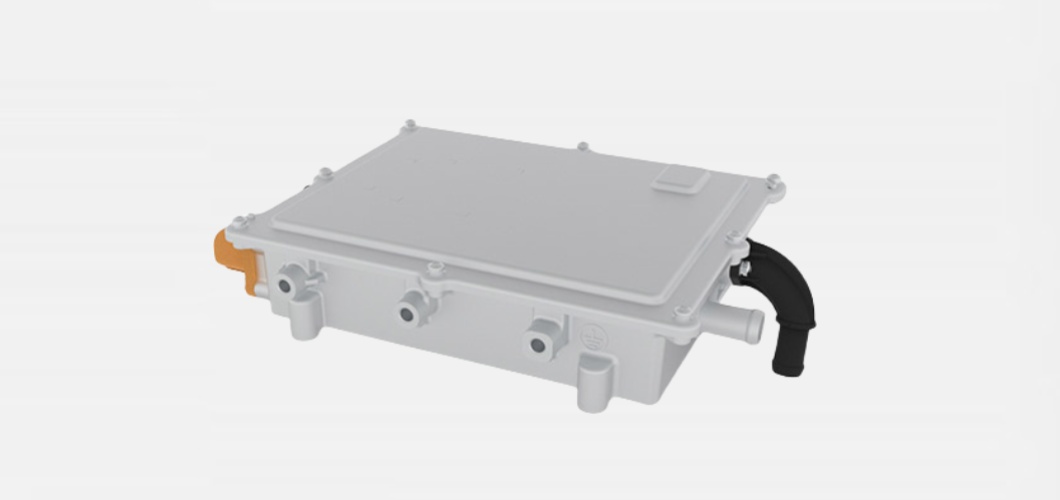

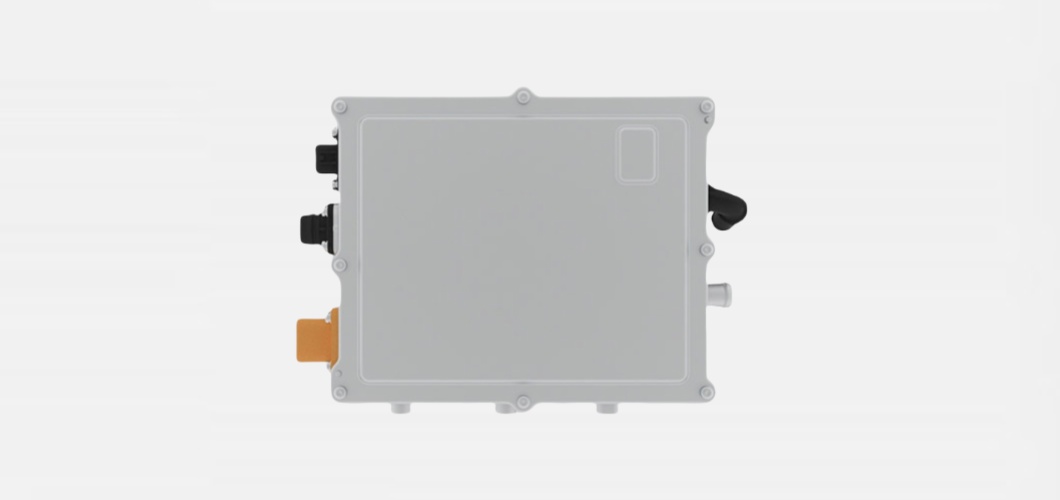

    DC/DC Converter

    DC/DC converter is an indispensable component in new energy vehicles. Its main function is to convert high voltage DC from the vehicle power battery to low voltage DC, so as to charge the vehicle 14V/27V or 48V low voltage battery and provide all the low voltage power supply for the whole vehicle.

    Specification

    • Technology Platform

      Full-bridge conversion technology

    • Input Voltage

      400V(200-500V)；800V（400-925V）

    • Output Voltage

      14V（9-16V；27V(24-30V)；48V

    • Output Power

      1.8kW；2.5kW；3kW；3.5kW；4kW；6kW

    • Efficiency

      93%(weighting)；96%(max)

    • Packaging

      Standard Metal Housing/Modular Design

    Core Advantages

    • High efficiency

    • Compact size

    • Digital control technology

    • High power density

    • High reliability

    • Single/bidirectional working mode (optional)

    Product Application Scenarioses

     Charge the vehicle's low-voltage battery;

    Provide power for the vehicle's lighting, entertainment system, dashboard, electric seats, Windows, etc.

    Typical Applications
